🏋 Motivation

In some recent posts, I outlined a some different ideas I have been experimenting with and thinking about:

• Comparing Lerna Storybook Architectures chronicles some of the thought I have been putting into architecting a monorepo which can serve as the backbone for many of my hobby projects
• Storybook Architecture Audit is an exploration of the different ways to use and architect a frontend design system in Storybook
• Style Tile Exercise for RichSoni.com introduces a pattern I read about in Atomic Design which enables me to prototype alongside my code
• Lastly, Experiment: Email Subject Lines (With Nilsen Strandskov) outlines a first attempt at revamp my email process, since this is an area I have neglected for a long time, but I see a lot of value in giving focus

This post describes a some code experimentation I did to synthesize elements of the content of the posts listed above.

🏝 Goals

The Primary Goal

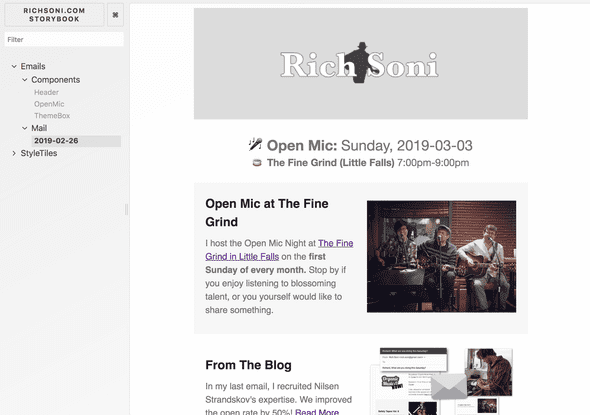

My primary goal was to just send a pretty standard email with an event reminder. Very similar to the one described in Experiment: Email Subject Lines (With Nilsen Strandskov).

Secondary Goals

I have some requirements for email in my system:

• Emails must work in most clients, or degrade nicely
• Emails should adhere to the principles outlined in Atomic Design system
• Email code should be as close and similar as possible to application code. This promotes reuse of critical elements (theming etc.), as well as opens the potential for future automation
• Email code should be as simple as possible
• Email should be visible and accessible to engineering, design, and product

These requirements are not currently satisfied. I wanted to apply the lessons learned from previous experiments to satisfy some of those requirements.

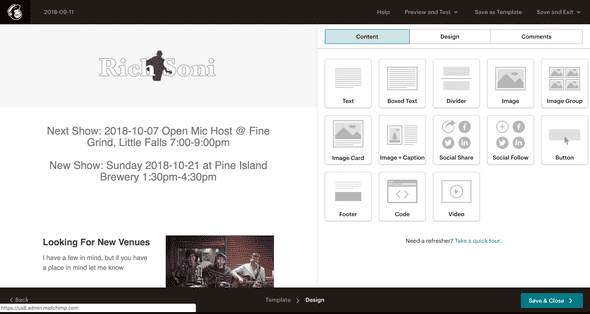

⏏ Ejecting From MailChimp Campaign Builder

I have a template that I built within the MailChimp email editor, which I have used / refined for several years. Designing a new template seemed counter productive. Instead, I chose to rewrite the template in the RichSoni.com Storybook which could satisfy my secondary goals for this experiment:

• Emails must work in most clients, or degrade nicely
• Emails should adhere to the principles outlined in Atomic Design system
• Email code should be as close and similar as possible to application code. This promotes reuse of critical elements (theming etc.), as well as opens the potential for future automation
• Email code should be as simple as possible
• Email should be visible and accessible to engineering, design, and product

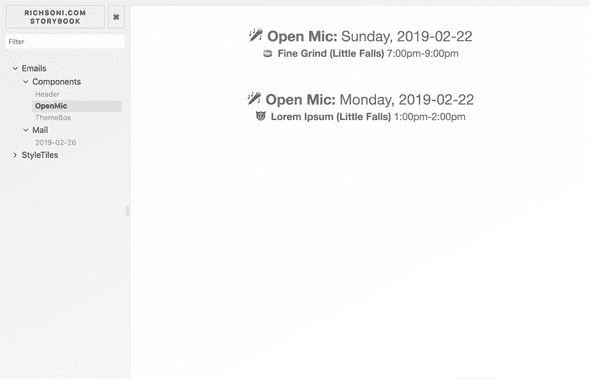

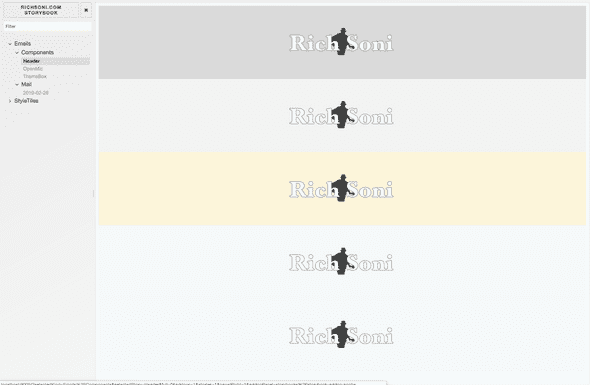

⚗ Atomizing

Atomic Design is a mental model for thinking about UI components. The premise is generally common sense for a developer, but is revolutionary when leveraged as a tool for communicating with a team and stakeholders. Storybook is just one tool that can be used to implement Atomic Design principles.

Outlook Compatibility

I also put some effort into making my email more resilient to email client compatibility quirks.

• How To Create HTML Email Newsletters To Look The Same – Even In Outlook
• Email Width And Sizes
• Email Client Feature List
• Outlook Conditional CSS

After doing this research, I wondered if there was tooling to make this easier.

I settled on giving react-html-email a shot.

react-html-email

react-html-email provides some really neat features:

• renderEmail(emailComponent): Render an email component to an HTML string. Adds an XHTML 1.0 Strict doctype, as per HTML Email Boilerplate
• configStyleValidator(config): By default, inline styles passed to the style prop will be validated against Campaign Monitor's CSS Support Guide
• Support for mailchimp mc HTML attributes

Using in Storybook

At this moment, I am only really leveraging one component from this library: renderEmail.

I wired renderEmail to a prop on my own Email component. This prop can be controlled by a Storybook Knob to reveal the source for the email.

🏁 Conclusions

This was experiment merely opens the door for lots of really interesting ideas in the future. Here are some I would like to try:

• Automatically creating emails for upcoming performances
• Fully leverage react-html-email, and possibly even contribute some new features to that project
